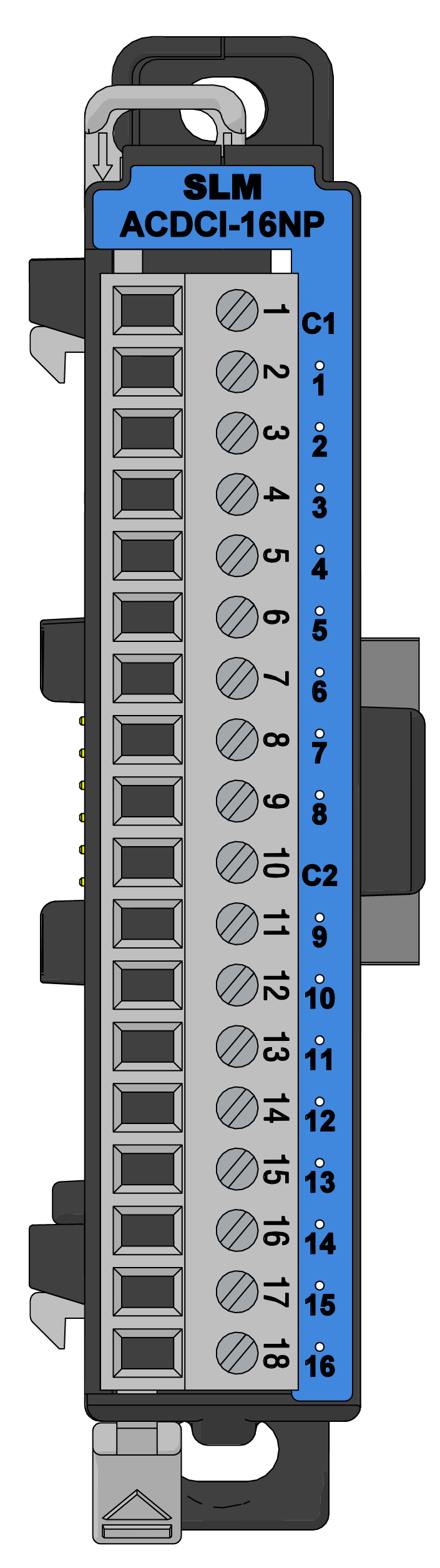

SLM-ACDCI-16NP

SLM-ACDCI-16NP

---

Channels: 16
Discrete Input Type: Sink/Source
Rated Voltage: 24 VAC/VDC\ Register Type: Discrete Input/Input Status

Specifications:
Download SLM-ACDCI-16NP Datasheet

Description

• Fast response input module for 24 VAC/VDC sink/source inputs.

• 16 input points for industrial control applications.

• Two isolated commons for flexible wiring.

• Compatible with Synergy Logic systems .

---

Configuration

• No configuration required

---

Modbus Mapping

Note

The following register mappings are based on a single-module configuration. Actual mappings may differ based on the physical slot arrangement in your system.

Modbus Register Mapping

Channel	Modbus Input Status Register	Common Terminal	Access
CH1	10001	C1	Read-Only
CH2	10002	C1	Read-Only
CH3	10003	C1	Read-Only
CH4	10004	C1	Read-Only
CH5	10005	C1	Read-Only
CH6	10006	C1	Read-Only
CH7	10007	C1	Read-Only
CH8	10008	C1	Read-Only
CH9	10009	C2	Read-Only
CH10	10010	C2	Read-Only
CH11	10011	C2	Read-Only
CH12	10012	C2	Read-Only
CH13	10013	C2	Read-Only
CH14	10014	C2	Read-Only
CH15	10015	C2	Read-Only
CH16	10016	C2	Read-Only

Notes:

• There is a one-to-one mapping between channels and registers (e.g., CH1 → 10001, CH2 → 10002, etc.).

---

Specifications

Download SLM-ACDCI-16NP Datasheet

---

Example Usage

Note

The following examples assume that it is the only module connected. Actual mapping may vary depending on the configuration of the system.

Python

import time
from pyModbusTCP.client import ModbusClient
import struct

client_ip = '192.168.1.255'  # Replace with your device's IP
client = ModbusClient(host=client_ip, port=502, auto_open=True)

value = client.read_discrete_inputs(address = 0, count = 16) # Read all 16 inputs
print(value)

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Python, visit Python Example.

Arduino

#include <ArduinoModbus.h> // Include Modbus library

// Assume ModbusRTUClient is already initialized (e.g., ModbusRTUClient.begin(...))
int slaveId = 0x01;       // The ID of the Modbus slave device
int startAddress = 0;     // The starting address of the inputs
int numInputs = 16;         // The number of inputs to read (0-15)

enum modbusType {
    INPUT_STATUS,
    INPUT_REGISTER,
    HOLDING_REGISTER,
    COIL
};

void setup() {
    # Setup modbus client
}

void loop() {
    uint16_t inputs[numInputs];
    ModbusRTUClient.requestFrom(slaveId, INPUT_STATUS, startAddress, numInputs);
    for (int i = 0; i < numInputs; i++) {
        inputs[i] = ModbusRTUClient.read();
    }
    for (int i = 0; i < numInputs; i++) {
        Serial.println(inputs[i]);
    }
}

Note

The above code uses the ArduinoModbus library and is not a complete program.

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Arduino, visit Arduino Example.

Codesys

Under Modbus_TCP_Server -> Modbus Server Channel Under Modbus_TCP_Server -> Modbus Server Channel -> I/O Mapping Usage

VAR
    DCI16_1 AT %IB0 : BYTE;
    DCI16_2 AT %IB1 : BYTE;
    DCICH1 AT IX0.0 : BOOL;
    DCICH2 AT IX0.1 : BOOL;
    DCICH3 AT IX0.2 : BOOL;
    DCICH4 AT IX0.3 : BOOL;
    DCICH5 AT IX0.4 : BOOL;
    DCICH6 AT IX0.5 : BOOL;
    DCICH7 AT IX0.6 : BOOL;
    DCICH8 AT IX0.7 : BOOL;
    DCICH9 AT IX1.0 : BOOL;
    DCICH10 AT IX1.1 : BOOL;
    DCICH11 AT IX1.2 : BOOL;
    DCICH12 AT IX1.3 : BOOL;
    DCICH13 AT IX1.4 : BOOL;
    DCICH14 AT IX1.5 : BOOL;
    DCICH15 AT IX1.6 : BOOL;
    DCICH16 AT IX1.7 : BOOL;
END_VAR

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Codesys, visit Codesys Example.

Productivity Suite

Tag

Tag Name	Type
DI1	Boolean
DI2	Boolean
DI3	Boolean
DI4	Boolean
DI5	Boolean
DI6	Boolean
DI7	Boolean
DI8	Boolean
DI9	Boolean
DI10	Boolean
DI11	Boolean
DI12	Boolean
DI13	Boolean
DI14	Boolean
DI15	Boolean
DI16	Boolean

Usage

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Productivity Suite, visit Productivity Suite Example.

Safety Precautions

• Do not add or remove modules while field power is applied.

• Ensure proper grounding and wire connections to prevent electrical hazards.

• Follow all local and national electrical codes.

• Maintain adequate ventilation to prevent overheating.
