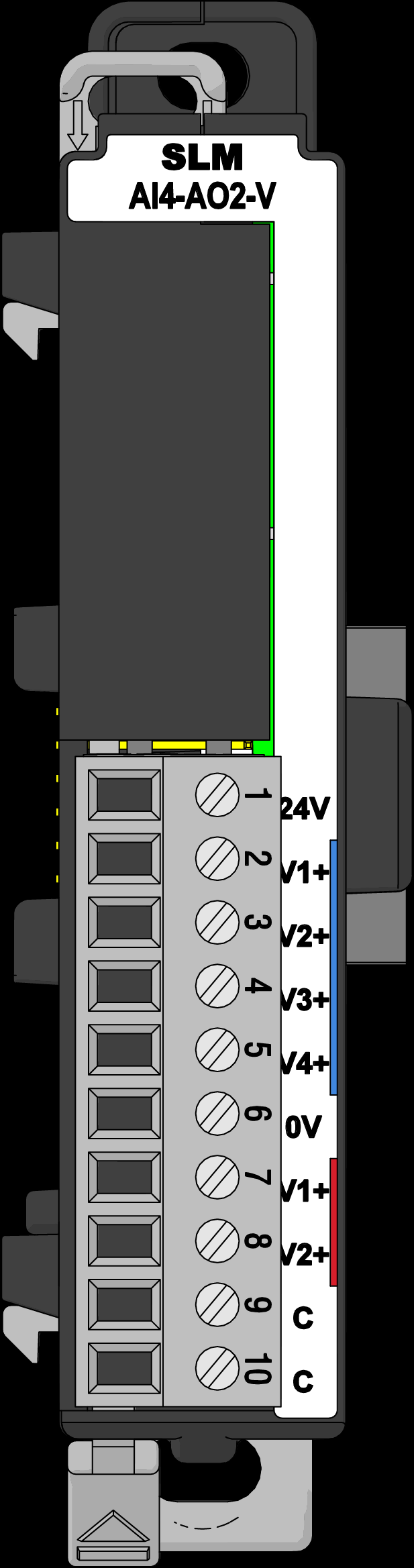

SLM-AI4-AO2-V

SLM-AI4-AO2-V

---

Input Channels: 4
Input Range: 0-10V
Input Resolution: 13-bit (0-8191)
Input Register Type: Analog Input/Input Registers

---

Output Channels: 2
Output Range: 0-10V
Output Resolution: 13-bit (0-8191)
Output Register Type: Analog Output/Holding Registers

Specifications:
Download SLM-AI4-AO2-V Datasheet

Description

• 4-channel 0-10V input and 2-channel 0-10V output module.

• 13-bit Resolution for precision control on both inputs and outputs

• Designed for industrial control applications.

---

Configuration

Channel Select

Enable or disable the channels to be read/written. The first channel of each type cannot be disabled.

---

Modbus Mapping

Note

The following register mappings assumes that it is the only module connected. Actual mapping may vary depending on the configuration of the system.

Input Register Mapping

Channel	Modbus Register	Access	Register Type	Data Length
Ch1	30001	Read-Only	Input Register	16-bit
Ch2	30002	Read-Only	Input Register	16-bit
Ch3	30003	Read-Only	Input Register	16-bit
Ch4	30004	Read-Only	Input Register	16-bit

Output Register Mapping

Channel	Modbus Register	Access	Register Type	Data Length
Ch1	40001	Read/Write	Holding Register	16-bit
Ch2	40002	Read/Write	Holding Register	16-bit

Notes:

• Each Modbus Input Register corresponds to a single analog input channel.

• Each Modbus Holding Register corresponds to a single analog output channel.

• 0-10V inputs are read-only and mapped to Modbus Input Registers (30001 - 30004).

• 0-10V outputs are read/write and mapped to Modbus Holding Registers (40001 - 40002).

• Values range from 0-8191 corresponding to 0-10V for both inputs and outputs.

---

Status Register Mapping

Note: The status registers are read-only booleans and are mapped to Discrete Input Status registers (101001 - 101010).

Status	Modbus Register	Access	Register Type	Data Length
Module diagnostics failure	101001	Read-Only	Discrete Input Status	1-bit
24V Missing	101002	Read-Only	Discrete Input Status	1-bit
AI Ch1 Under Range	101003	Read-Only	Discrete Input Status	1-bit
AI Ch2 Under Range	101004	Read-Only	Discrete Input Status	1-bit
AI Ch3 Under Range	101005	Read-Only	Discrete Input Status	1-bit
AI Ch4 Under Range	101006	Read-Only	Discrete Input Status	1-bit
AI Ch1 Over Range	101007	Read-Only	Discrete Input Status	1-bit
AI Ch2 Over Range	101008	Read-Only	Discrete Input Status	1-bit
AI Ch3 Over Range	101009	Read-Only	Discrete Input Status	1-bit
AI Ch4 Over Range	101010	Read-Only	Discrete Input Status	1-bit

---

Example Usage

Note

The following examples assume that it is the only module connected. Actual mapping may vary depending on the configuration of the system.

Python

import time
from pyModbusTCP.client import ModbusClient
import struct

client_ip = '192.168.1.255'  # Replace with your device's IP
client = ModbusClient(host=client_ip, port=502, auto_open=True)

# Convert 0-10V to 0-8191
def V_to_raw(V):
    return int(V * (8191 / 10))

# Convert 0-8191 to 0-10V
def raw_to_V(raw):
    return raw * (10 / 8191)

# Read all input values
input_raw = client.read_input_registers(0, 4)  # Read 4 inputs
input_V = [raw_to_V(x) for x in input_raw]
print("Input voltages:", input_V)

# Set both outputs
output_values = [5.0, 7.5]  # Set to 5V and 7.5V
raw_values = [V_to_raw(v) for v in output_values]
client.write_multiple_registers(0, raw_values)  # Write to both outputs

# Read current output values
current_raw = client.read_holding_registers(0, 2)  # Read both outputs
current_V = [raw_to_V(x) for x in current_raw]
print("Current outputs:", current_V)

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Python, visit Python Example.

Arduino

#include <ArduinoModbus.h> // Include Modbus library

// Assume ModbusRTUClient is already initialized (e.g., ModbusRTUClient.begin(...))
int slaveId = 0x01;       // The ID of the Modbus slave device
int inputStartAddress = 0;     // The starting address of the input registers
int outputStartAddress = 0;    // The starting address of the output registers
int numInputs = 4;            // The number of inputs to read
int numOutputs = 2;           // The number of outputs to write

void setup() {
    # Setup modbus client
}

void loop() {
    // Read all inputs
    ModbusRTUClient.requestFrom(slaveId, INPUT_REGISTERS, inputStartAddress, numInputs);
    float inputVoltages[4];
    for (int i = 0; i < numInputs; i++) {
        int rawValue = ModbusRTUClient.read();
        inputVoltages[i] = map(rawValue, 0, 8191, 0, 10);  // Convert to 0-10V
        // Process voltage value
    }

    // Write to both outputs
    float outputVoltages[2] = {5.0, 7.5};  // Set to 5V and 7.5V
    int outputValues[2];
    for (int i = 0; i < numOutputs; i++) {
        outputValues[i] = map(outputVoltages[i], 0, 10, 0, 8191);
    }

    ModbusRTUClient.beginTransmission(slaveId, HOLDING_REGISTERS, outputStartAddress, numOutputs);
    for (int i = 0; i < numOutputs; i++) {
        ModbusRTUClient.write(outputValues[i]);
    }
    ModbusRTUClient.endTransmission();

    delay(1000);
}

Note

The above code uses the ArduinoModbus library and is not a complete program.

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Arduino, visit Arduino Example.

Codesys

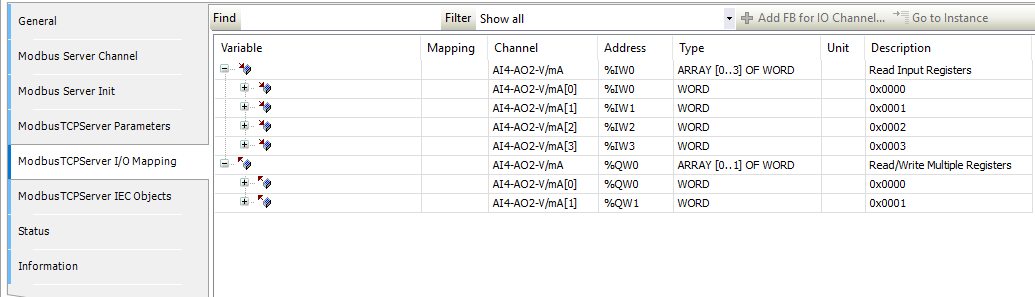

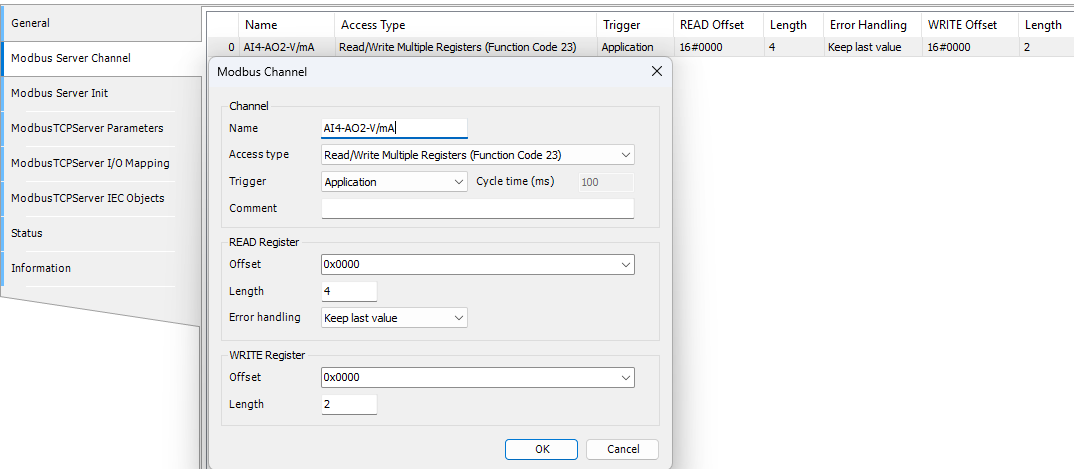

Under Modbus_TCP_Server -> Modbus Server Channel Under Modbus_TCP_Server -> Modbus Server Channel -> I/O Mapping Usage

VAR
    // Inputs
    AI1 AT %IW0 : WORD;
    AI2 AT %IW1 : WORD;
    AI3 AT %IW2 : WORD;
    AI4 AT %IW3 : WORD;

    // Outputs
    AO1 AT %QW0 : WORD;
    AO2 AT %QW1 : WORD;

    // Converted values
    InputVoltages : ARRAY[1..4] OF REAL;
    OutputVoltages : ARRAY[1..2] OF REAL;
END_VAR

// Convert raw values to voltages
InputVoltages[1] := WORD_TO_REAL(AI1) * 10.0 / 8191.0;
InputVoltages[2] := WORD_TO_REAL(AI2) * 10.0 / 8191.0;
InputVoltages[3] := WORD_TO_REAL(AI3) * 10.0 / 8191.0;
InputVoltages[4] := WORD_TO_REAL(AI4) * 10.0 / 8191.0;

// Convert voltages to raw values and write to outputs
AO1 := REAL_TO_WORD(OutputVoltages[1] * 8191.0 / 10.0);
AO2 := REAL_TO_WORD(OutputVoltages[2] * 8191.0 / 10.0);

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Codesys, visit Codesys Example.

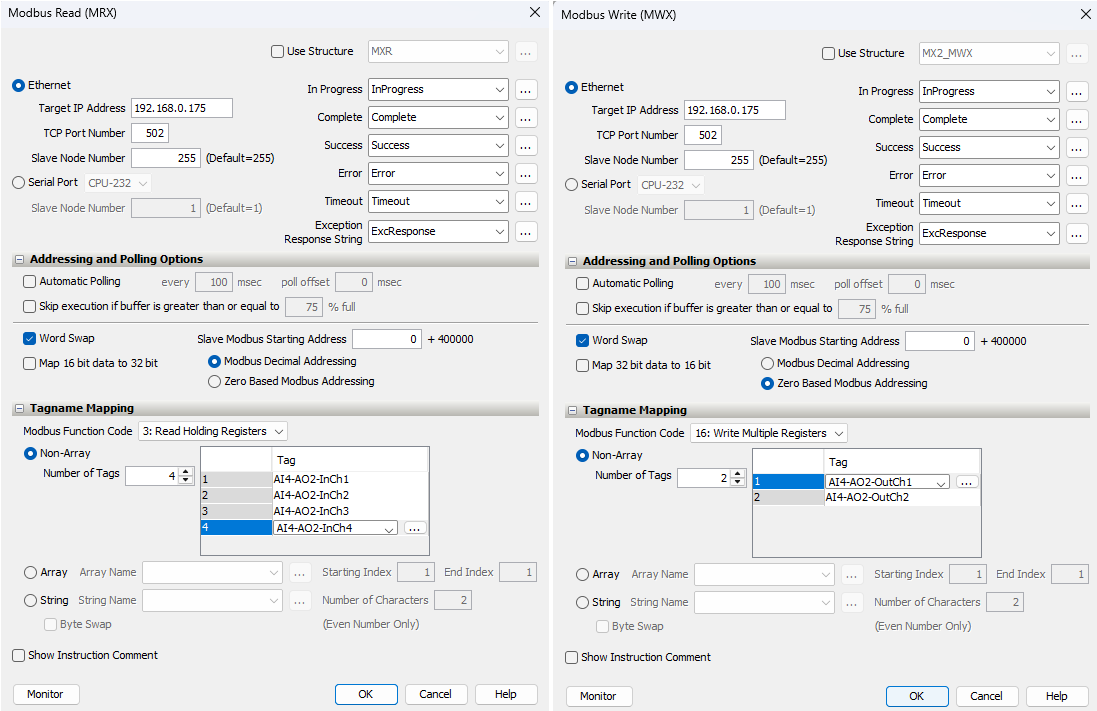

Productivity Suite

Tag

Tag Name	Type
AI1	Integer, 16 Bit
AI2	Integer, 16 Bit
AI3	Integer, 16 Bit
AI4	Integer, 16 Bit
AO1	Integer, 16 Bit
AO2	Integer, 16 Bit

Usage

Ladder Logic Example

Network 1: Read Inputs
[AI1] -> [Scale] -> [InputVoltage1]  // Scale 0-8191 to 0-10V
[AI2] -> [Scale] -> [InputVoltage2]
[AI3] -> [Scale] -> [InputVoltage3]
[AI4] -> [Scale] -> [InputVoltage4]

Network 2: Write Outputs
[OutputVoltage1] -> [Scale] -> [AO1]  // Scale 0-10V to 0-8191
[OutputVoltage2] -> [Scale] -> [AO2]

Note

This is an explanatory section on how to read/write to a module. For a more complete example using Productivity Suite, visit Productivity Suite Example.

---

Specifications

Download SLM-AI4-AO2-V Datasheet

Safety Precautions

• Do not add or remove modules while field power is applied.

• Ensure proper grounding and wire connections to prevent electrical hazards.

• Follow all local and national electrical codes.

• Maintain adequate ventilation to prevent overheating.

For more details and technical support, visit Synergy Logic or contact support@synergy-logic.com.
