What’s in the Box

What’s in the Box#

The SLM-RP4 ships assembled and ready to run. OpenPLC Runtime is already installed and starts automatically at power-up.

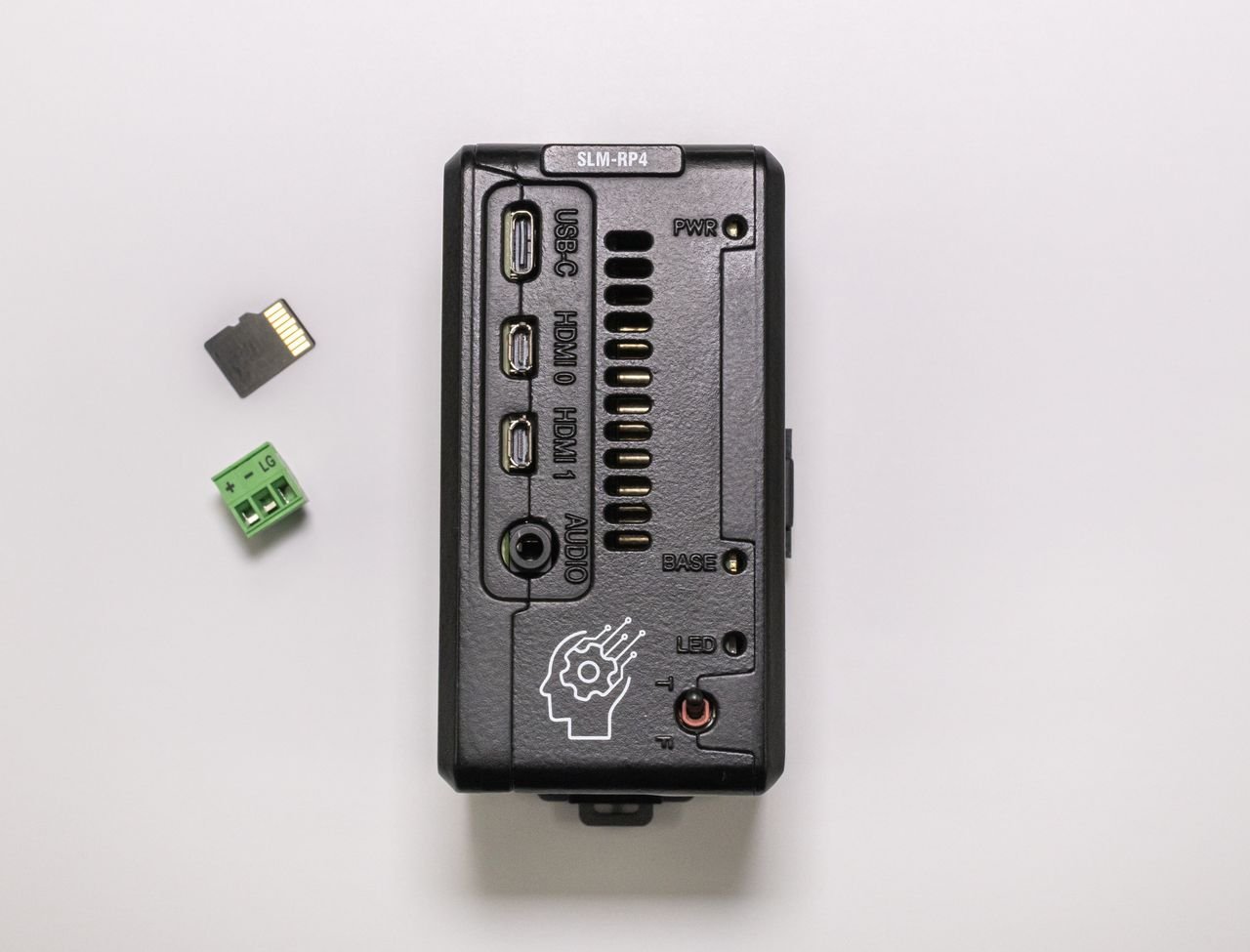

The SLM-RP4 base controller, its SD card and the 24 VDC terminal block connector

The carton contains:

  • The SLM-RP4 base controller, with the DIN rail clip fitted.

  • A terminal block connector for 24 VDC power.

  • An SD card, already inserted in the SLM-RP4.

Do not remove the SD card except to reimage it

The SD card contains the operating system and OpenPLC Runtime. The SLM-RP4 cannot boot without it. See Recovery and Factory Reset for the reimaging procedure.

I/O modules are ordered separately from the Synergy Logic store and ship in their own packaging.

See Peripherals for the ports and indicators on the device, and Mounting and Power for installation.
