Module Catalog#
Eighteen Synergy Logic modules are supported by the SLM-RP4. All of them can be ordered from the Synergy Logic store.
Discrete inputs#

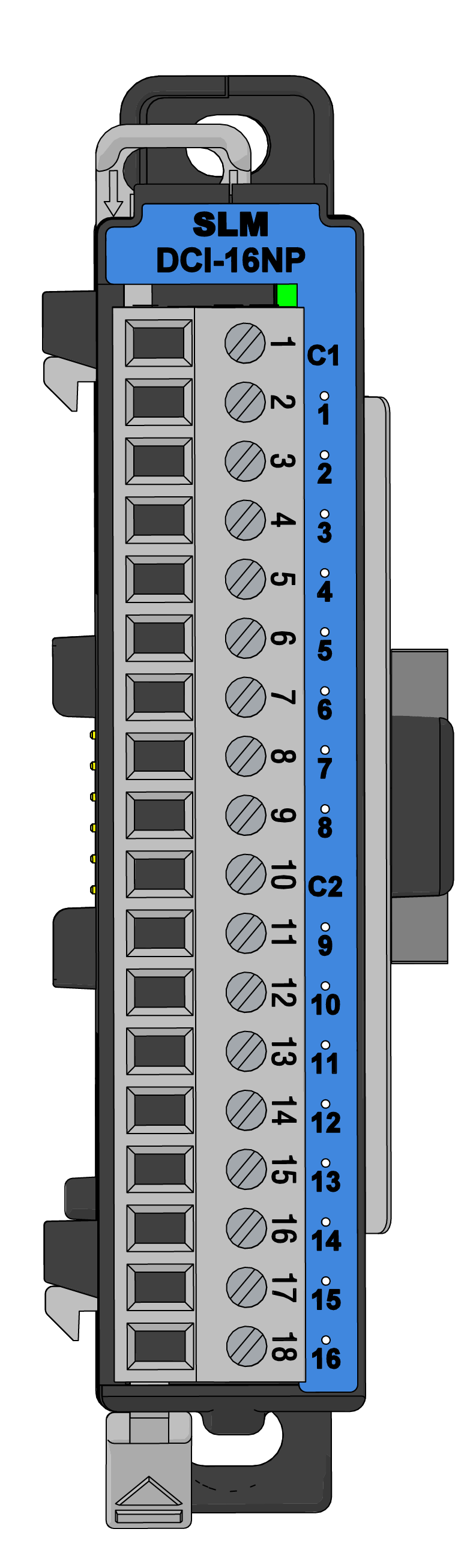

Channels: 16
Discrete Input Type: Sink/Source
Rated Voltage: 12-24 VDC

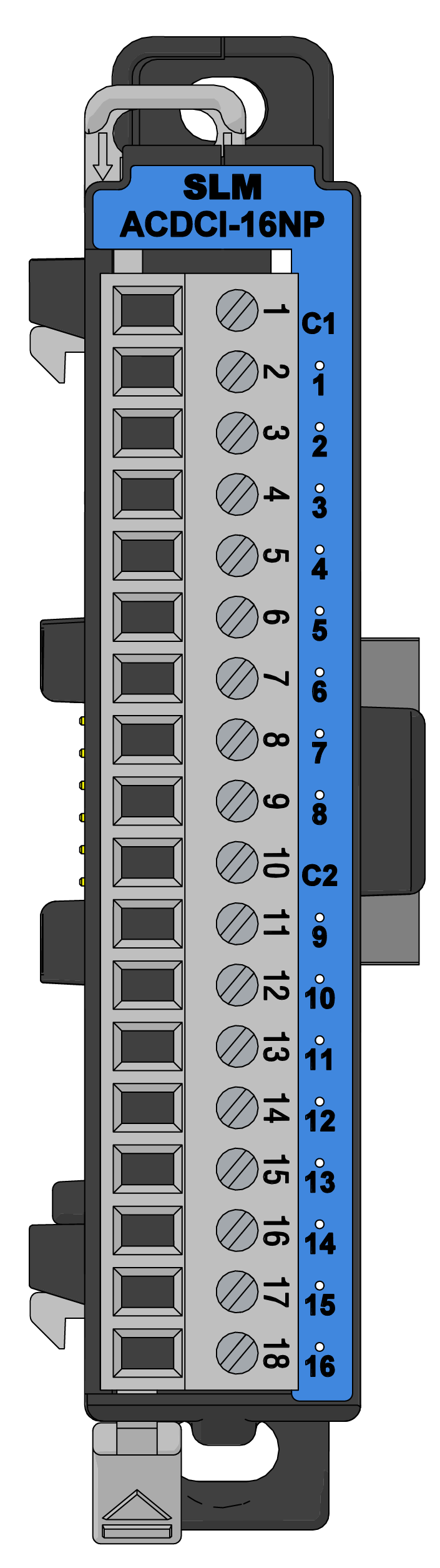

Channels: 16
Discrete Input Type: Sink/Source
Rated Voltage: 24 VAC/VDC

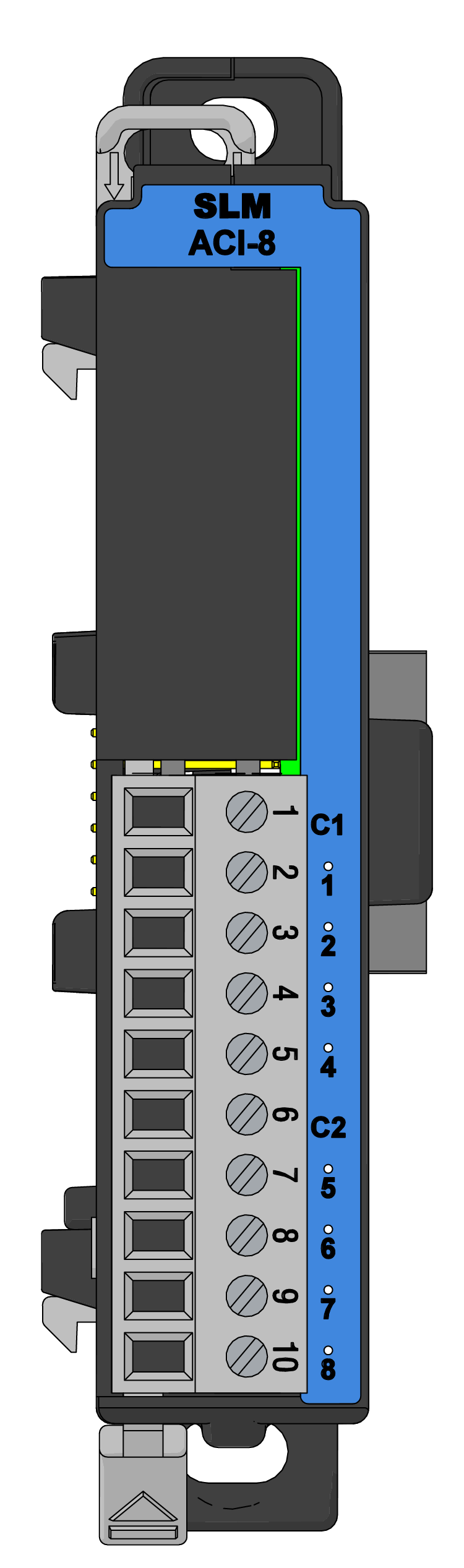

Channels: 8
Rated Voltage: 100-240 VAC
AC Frequency: 47-63 Hz

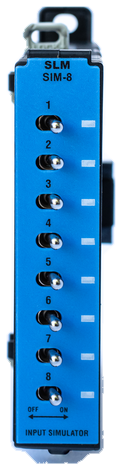

Channels: 8
Discrete Input Type: Toggle Switch
Discrete outputs#

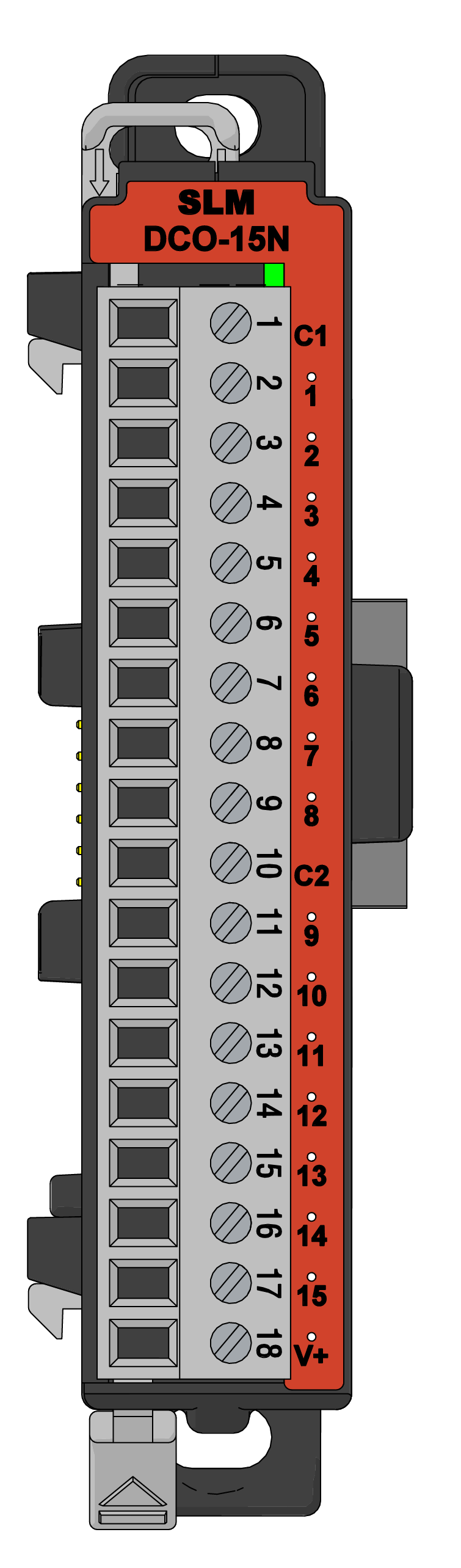

Channels: 15
Voltage Ranges: 3.3-24 VDC
Output Type: Sink

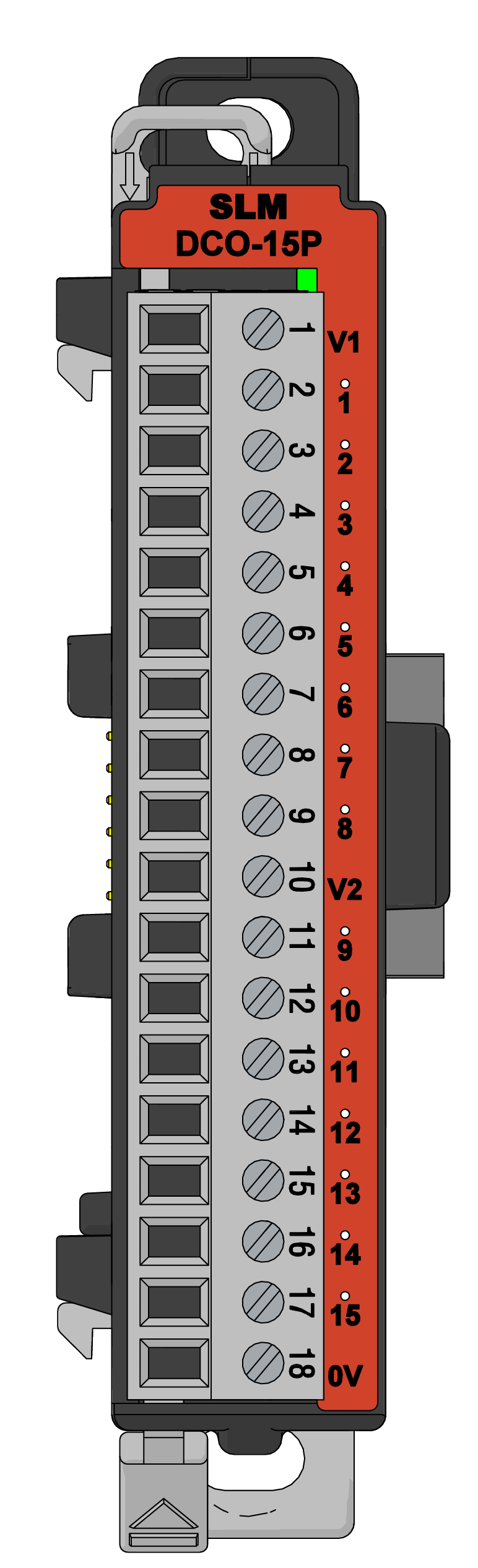

Channels: 15
Voltage Ranges: 12-24 VDC
Output Type: Source

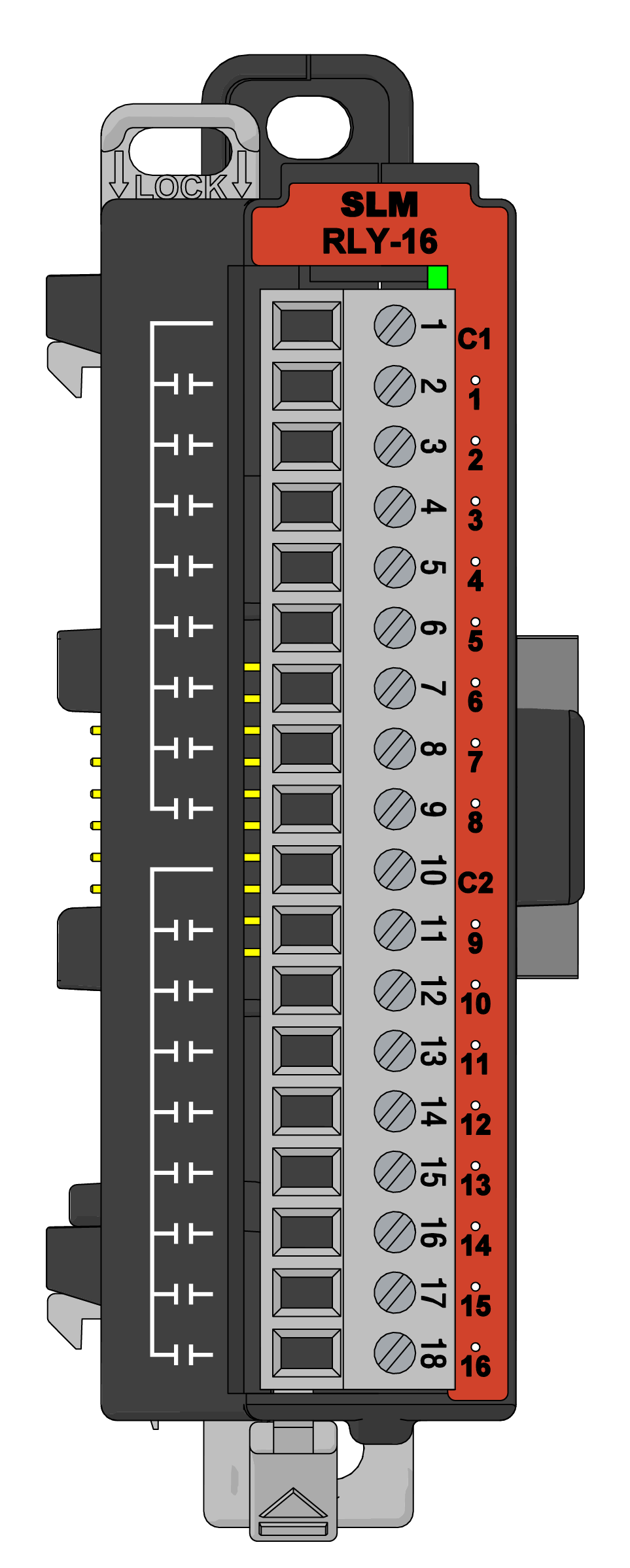

Channels: 16
Discrete Output Type: Relay FORM A (SPST)
Rated Voltage: 6.25-30 VDC, 6-120 VAC

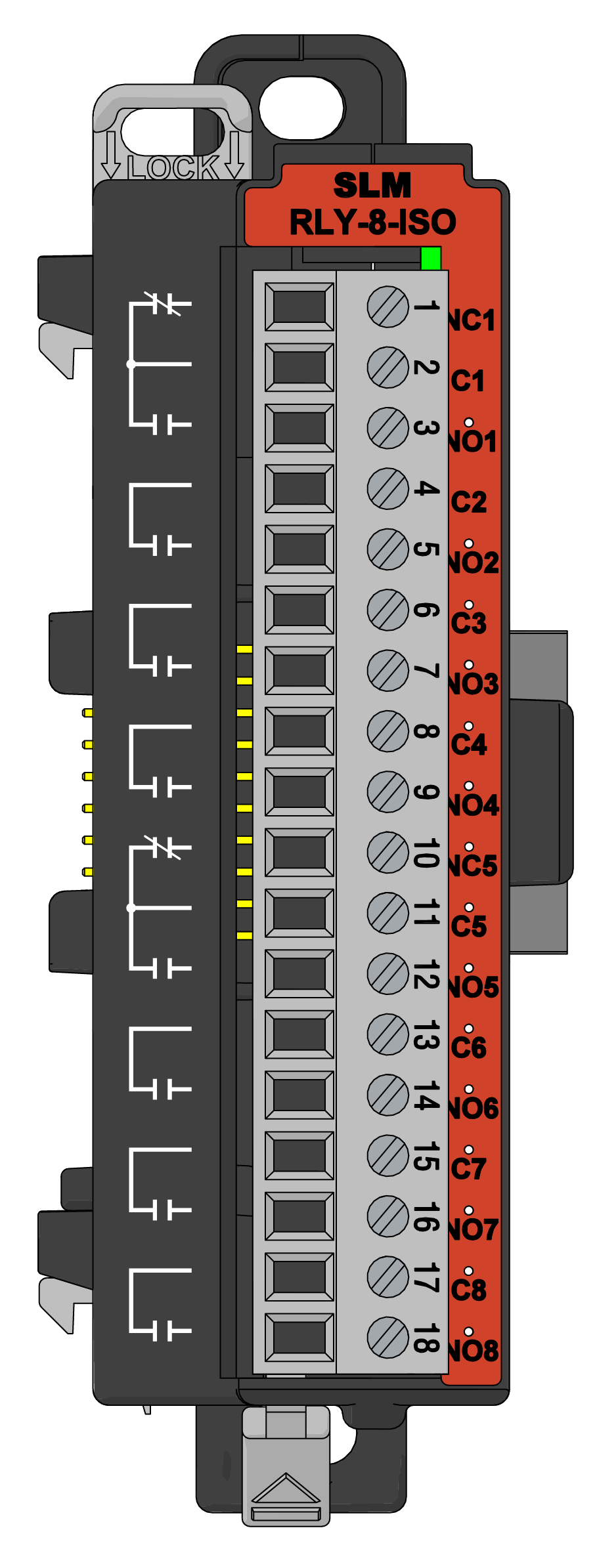

Channels: 8
Discrete Output Type: 6 Relays - FORM A (SPST), 2 Relays - FORM C (SPDT, channels 1 and 5)
Rated Voltage: 6-24 VDC, 6-120 VAC
Discrete combo modules#

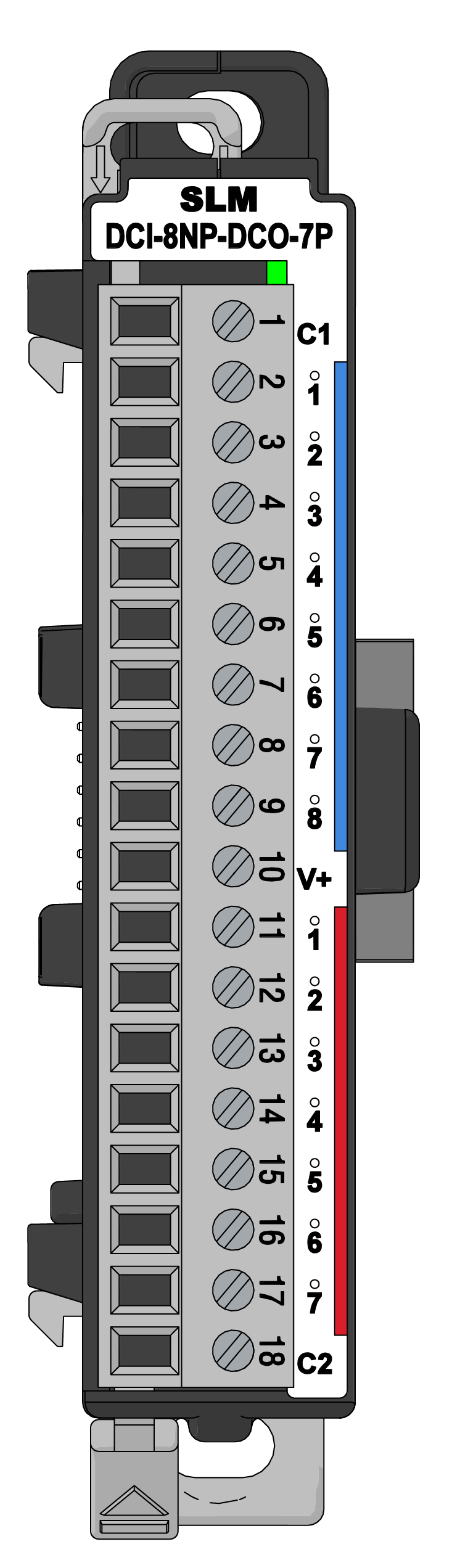

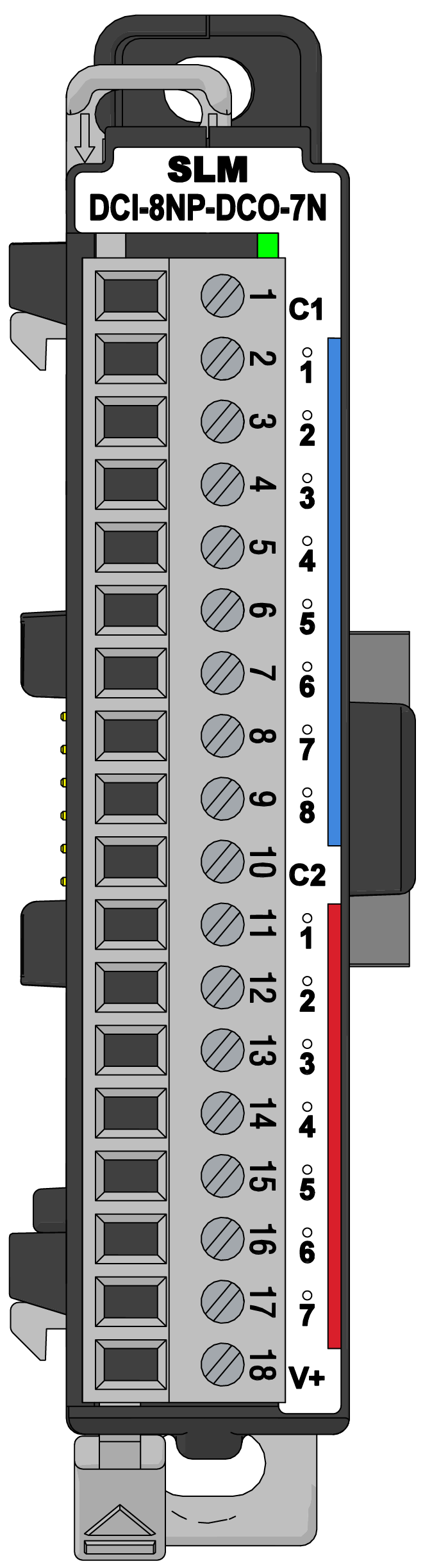

Input Channels: 8
Discrete Input Type: Sink/Source
Rated Input Voltage: 12-24 VDC
Output Channels: 7
Discrete Output Type: Sink
Rated Output Voltage: 3.3-24 VDC
Input Channels: 8
Discrete Input Type: Sink/Source
Rated Input Voltage: 12-24 VDC
Output Channels: 7
Discrete Output Type: Source
Rated Output Voltage: 12-24 VDC

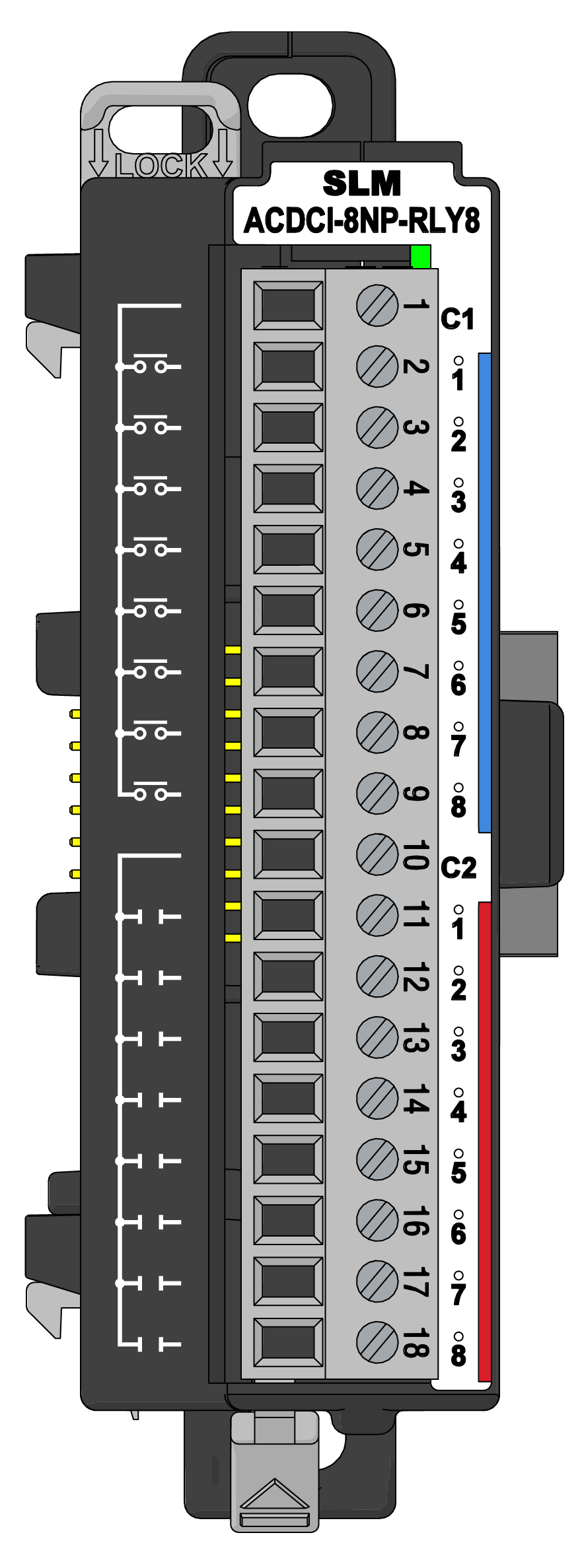

Input Channels: 8
Discrete Input Type: Sink/Source
Rated Input Voltage: 24 VAC/VDC
Output Channels: 8
Discrete Output Type: Relay FORM A (SPST)
Rated Voltage: 6-30 VDC, 6-120 VAC
Analog inputs#

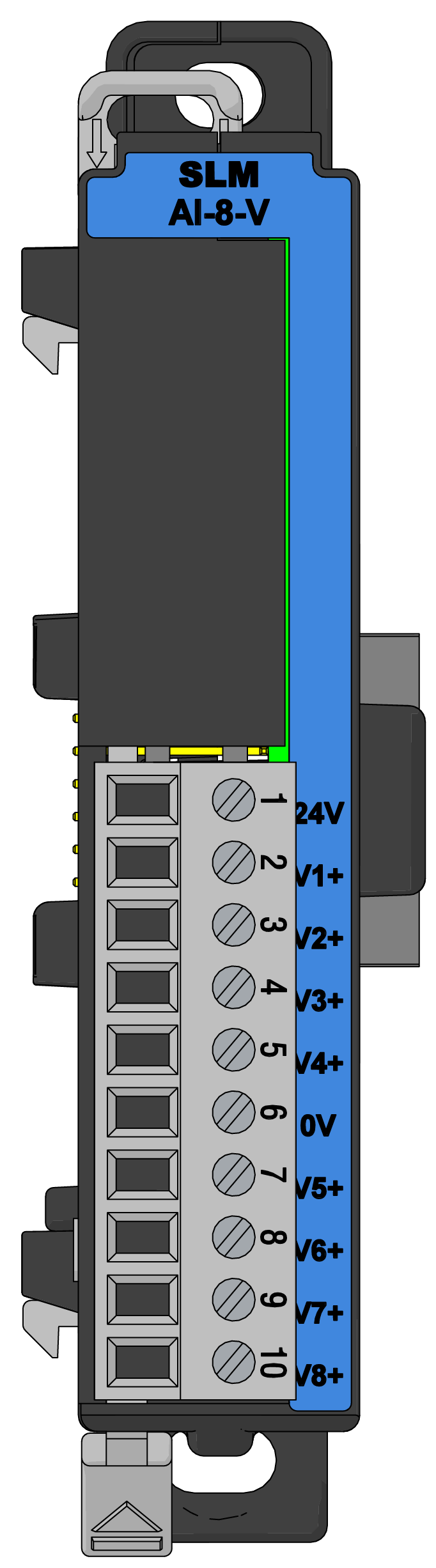

Channels: 8
Input Range: 0-10V
Resolution: 13-bit (0-8191)

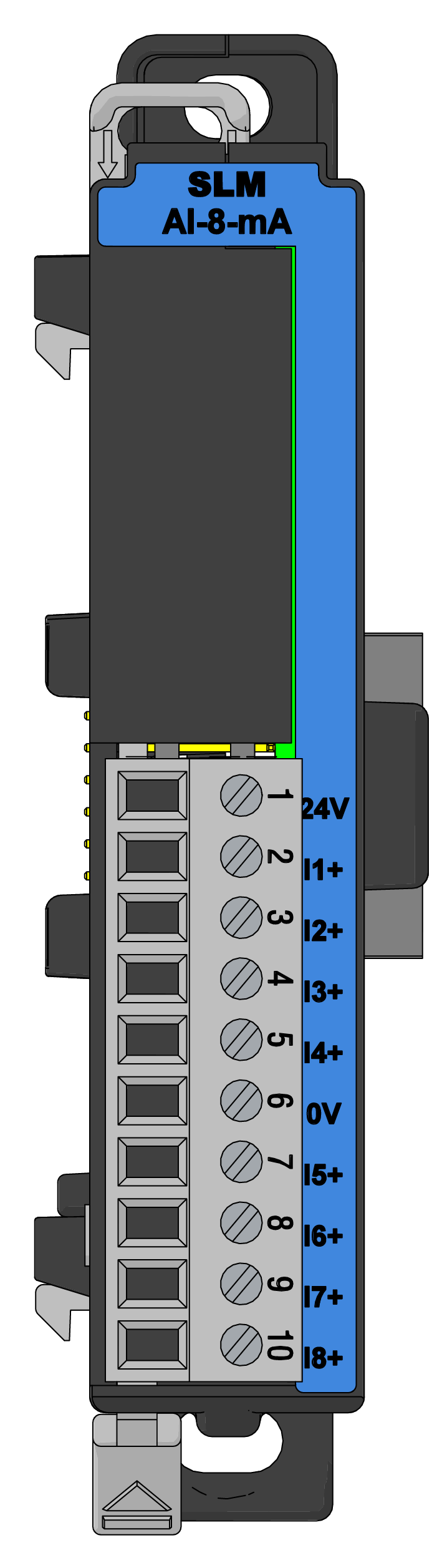

Channels: 8
Input Range: 0-20mA
Resolution: 13-bit (0-8191)
Analog outputs#

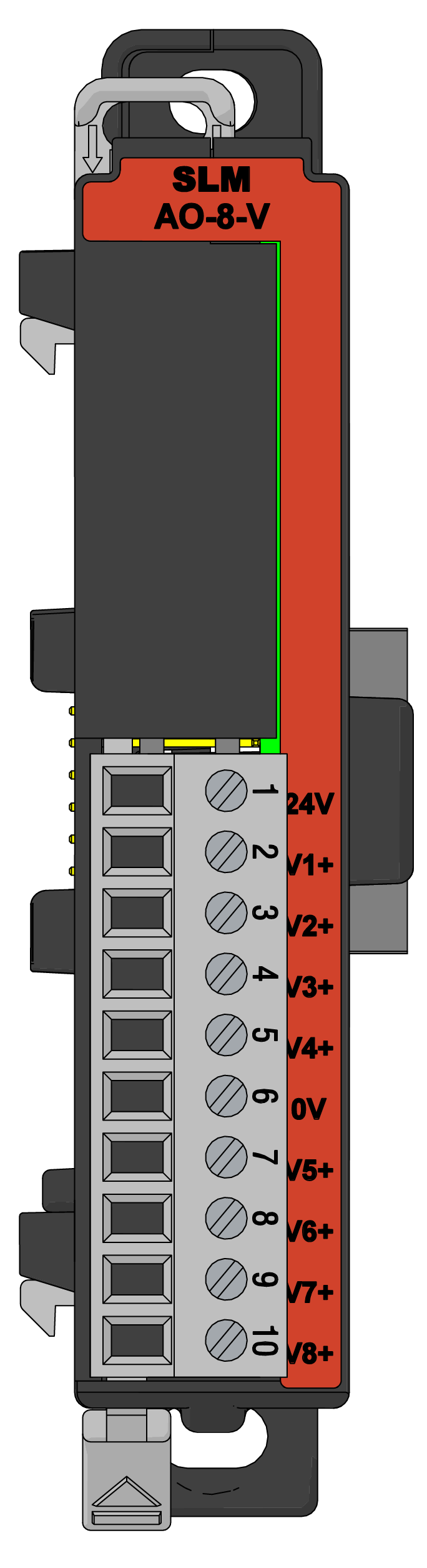

Channels: 8
Output Range: 0-10V
Resolution: 12-bit (0-4095)

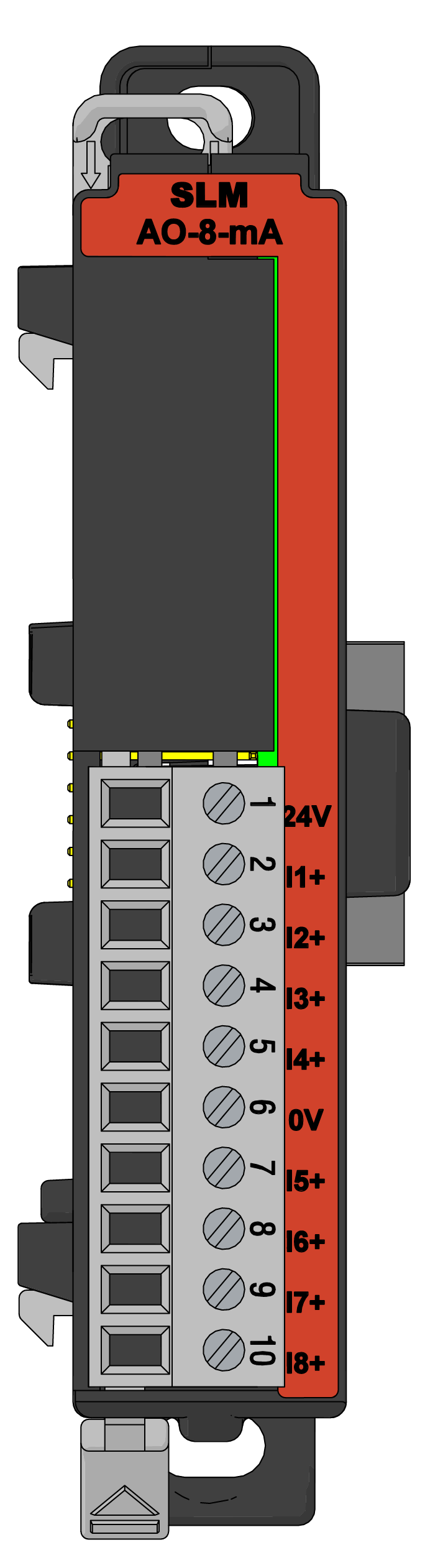

Channels: 8
Output Range: 4-20mA
Resolution: 12-bit (0-4095)
Analog combo modules#

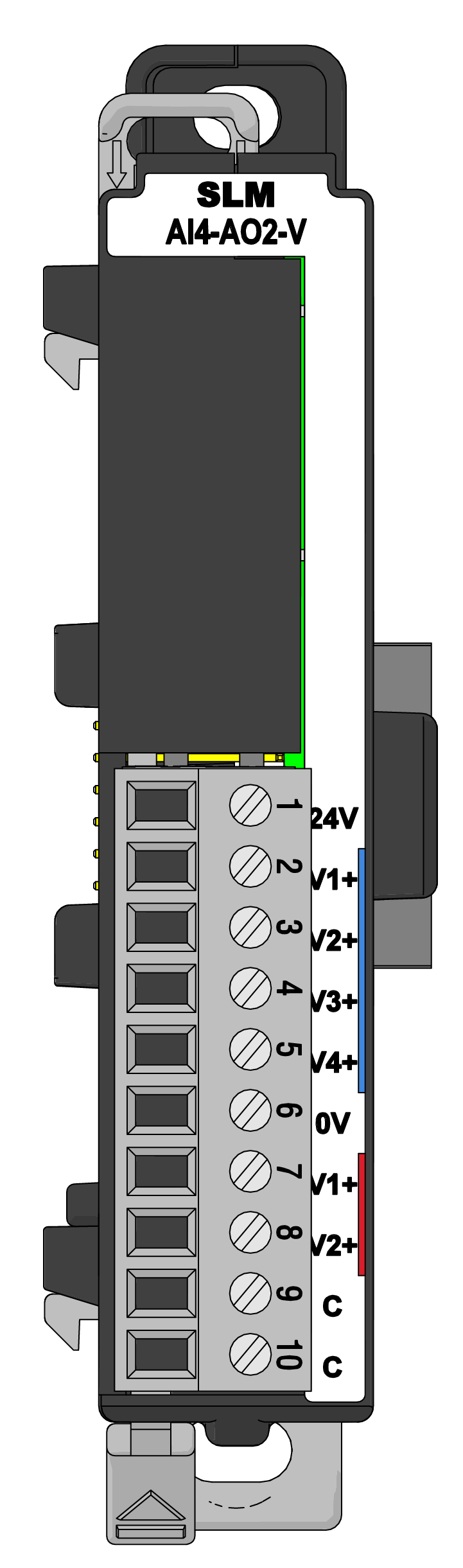

Input Channels: 4
Input Range: 0-10V
Input Resolution: 13-bit (0-8191)
Output Channels: 2
Output Range: 0-10V
Output Resolution: 12-bit (0-4095)

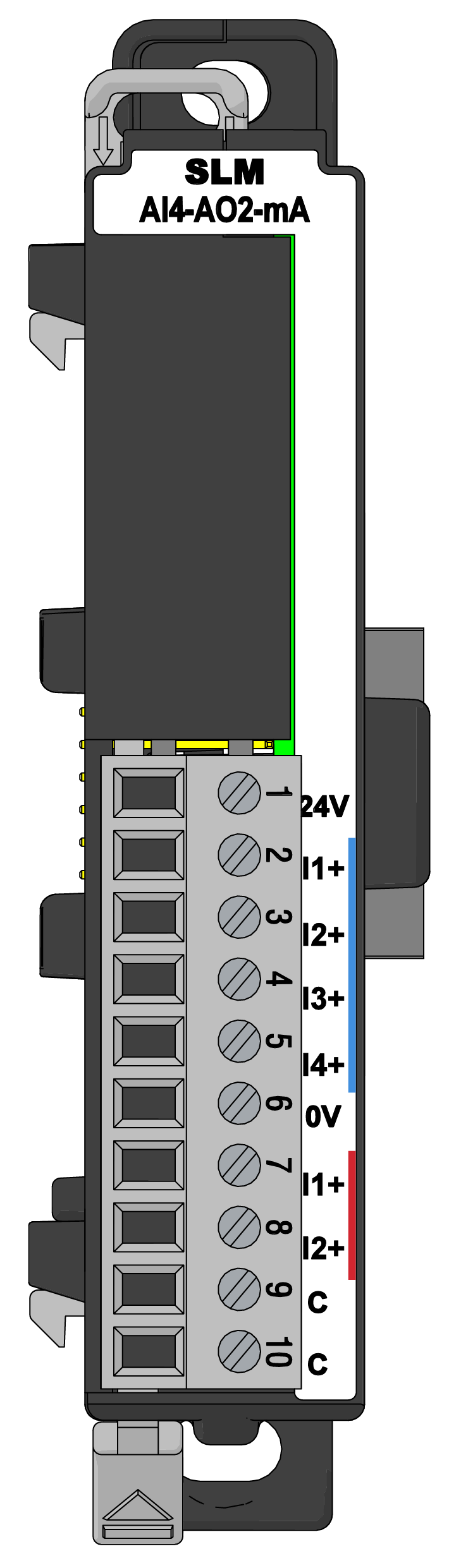

Input Channels: 4
Input Range: 0-20mA
Input Resolution: 13-bit (0-8191)
Output Channels: 2
Output Range: 4-20mA
Output Resolution: 12-bit (0-4095)
Temperature#

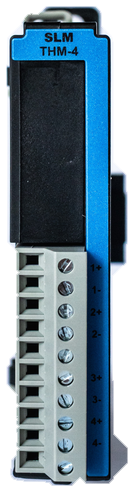

Channels: 4
Thermocouple Types: J, E, K, R, S, T, B, N, and C
Voltage Ranges: 0-39.0625 mVDC, ±39.0625 mVDC, ±78.125 mVDC, 0-156.25 mVDC, ±156.25 mVDC,
0-1250 mVDC
Accuracy: ±0.1 °C or °F
Voltage: 16 bit (Formatted as a 32-bit float)
Data Type: IEEE-754 32-bit floating point OR Integer and Decimal (16-bit each)
Sensor type is configured per channel, so one module can carry a mix of thermocouple types and raw millivolt inputs. Burnout direction and units are configured for the whole module.
